Beschreibung
Das neue und innovative iXF Leichtbau-Vollcarbon-E-Bike. Ein ganz neues Segment von E-Bikes, das sich durch Handling und Fahrbarkeit auszeichnet. iXF 9.7 ist der perfekte Partner für Ihren Weg in die Freiheit. Der neue Bosch Performance Line SX-Antrieb ist trotz seiner geringen Größe sehr leistungsstark. Der innovative 400-Wh-Akku bringt Sie auch auf längeren Strecken ans Ziel. Das Fahrrad ist mit hochwertigen Shimano-Komponenten in XT- und SLX-Kits ausgestattet. Die Federung ist von DT Swiss und es gibt auch eine Teleskopsattelstütze.
BASE INFO
| E-SYSTEM | BOSCH SX Performance, Battery CompactTube 400Wh |
| MAX. TORQUE | 55Nm / 300% |
| SUPPORT UP TO SPEED | 25km/h |
| WEIGHT | 18.30 kg |
ISO and EN norm
| ISO norm | EN 15194 Standard for ‘Electronically Power Assisted Cycles’ (EPAC) |
| EN norm | EN17406 Condition 3 For rough Off-Road riding and jumps less than 60cm |
| LOAD CAPACITY | 150 Kg |
E- BIKE PARTS
| MOTOR | BOSCH Performance SX, 55Nm |
| CHARGER | BOSCH 2A |
| BATTERY | BOSCH CompactTube, 400Wh |

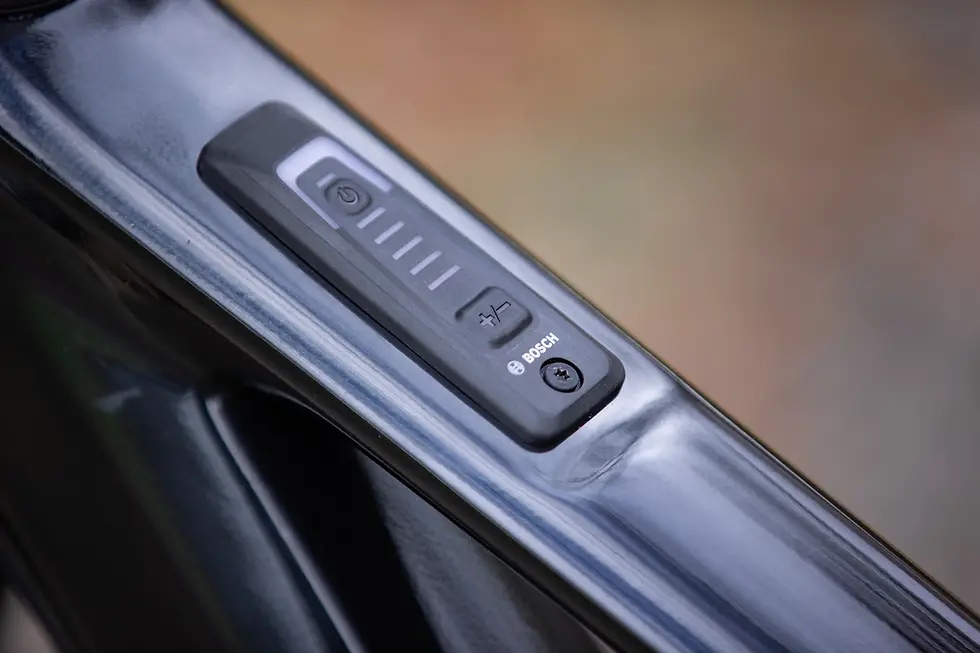

| DISPLAY | BOSCH Mini Remote |
FRAMESET
| FRAME | SU-E10-01, Carbon MTB DC; Advanced Down Country Geometry, Travel 140 mm, Integrated Cable routing, BB92, 3D one pice link, Carbon swingarm, UDH dropout, Boost Thru Axle 148x12 mm, Dropped seat post ready |
| SUSPENSION FORK | DT Swiss F535, Tapered, 15x110mm axle, 150mm travel |

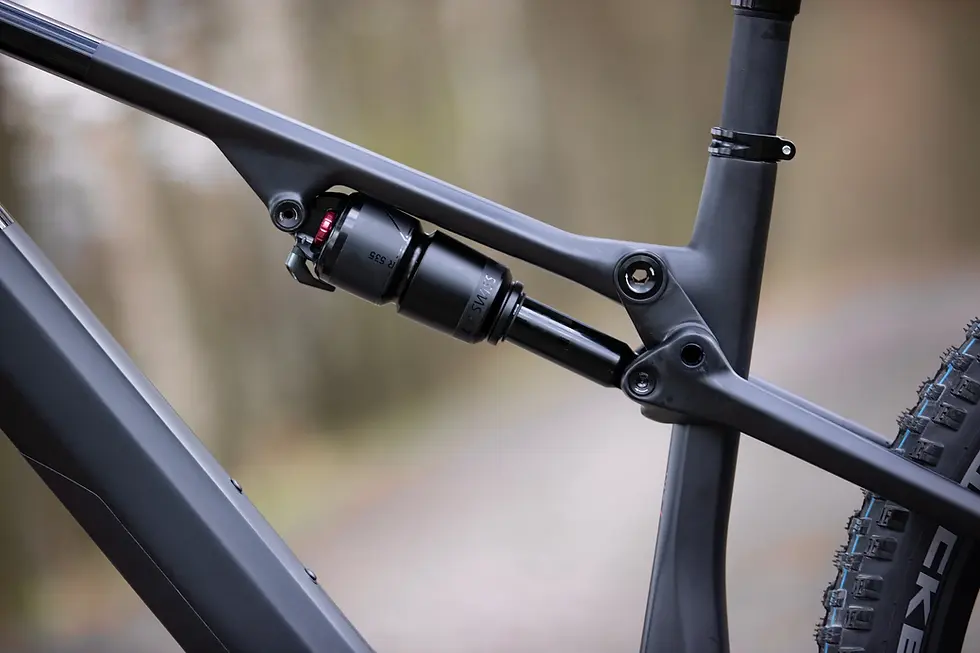

| REAR SHOCK | DT Swiss R535, size 210x55mm, OL |
| HEADSET | ACROS AZX-596R1S, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°, Stainless Bearings |
| REAR AXLE | SB01, TA12x175.5, M12xP1.0x14.5mm, Black |
DRIVETRAIN
| SHIFTERS RIGHT | SHIMANO SLX SL-M7100-IR, RAPIDFIRE Plus, 12-speed |
| REAR DERAILLEUR | SHIMANO XT RD-M8100, Shadow Plus Design |
| CRANKSET | ONE Race, Alloy |
| CHAINRING | ONE Race, 34T |
| CASSETTE | SHIMANO DEORE CS-M6100, 12-speed, 10-51T |
| CHAIN | SHIMANO DEORE CN-M6100 |
BRAKING SYSTEM
| BRAKE FRONT | SHIMANO XT M8120, 4 piston, hydraulic disc brake |
| ROTOR FRONT | SHIMANO SM-RT64, 180mm |
| BRAKE REAR | SHIMANO XT M8120, 4 piston, hydraulic disc brake |
| ROTOR REAR | SHIMANO SM-RT64, 180mm |
WHEELS
| WHEELSET FRONT | DT Swiss Hybrid MTB H 1900 SPLINE®, CL, 15x110mm, Tubeless Ready |
| WHEELSET REAR | DT Swiss Hybrid MTB H 1900 SPLINE®, CL, 12x148mm, SH12, Tubeless Ready |
| TIRE FRONT | Schwalbe Wicked Will Evo, SuperGround, TL-Easy, 29x2.40", ADDIX SpeedGrip |
| TIRE REAR | Schwalbe Wicked Will Evo, SuperGround, TL-Easy, 29x2.40", ADDIX SpeedGrip |
COCKPIT
| STEM | ONE ICR, Alloy, 35mm, 0° |
| HANDLEBAR | ONE Alloy, 20mm rise, 35mm |
| GRIPS LEFT | ONE Race, Lock-On |
| GRIPS RIGHT | ONE Race, Lock-On |
PARTS
| SADDLE | Fizi:k Aidon X5, Alloy |
| SEATPOST LEVER | SHIMANO SL-MT500-L, Seat post lever |
| SEATPOST | ONE Sport Dropper Post, Alloy, 30.9mm |
| SEATPOST CLAMP | ONE CC-080A, 34.9mm, Black |

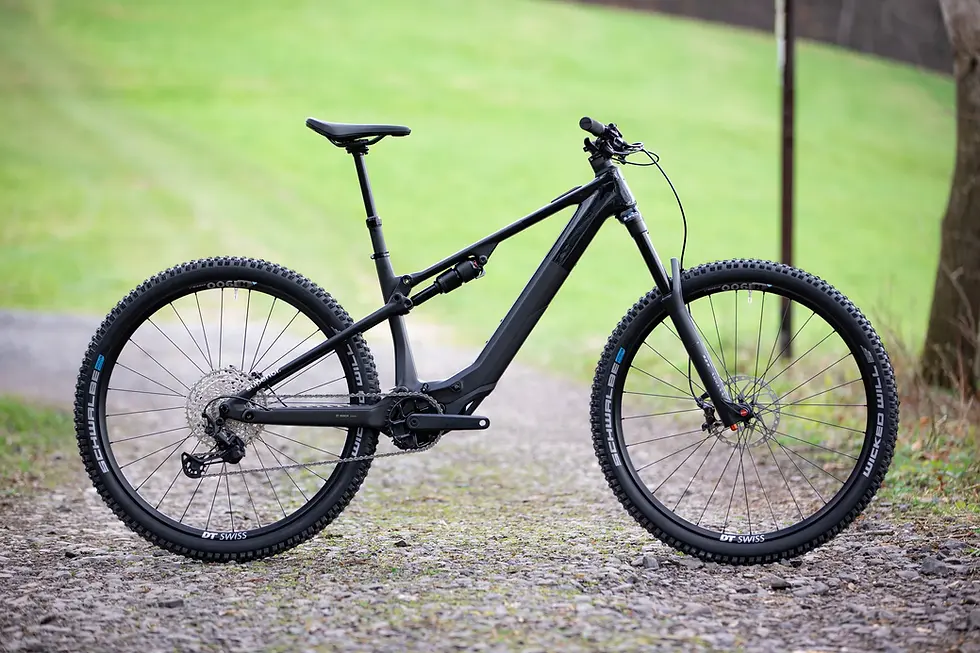

⚡Superior iXF 9.7, 2025, SX/400wh, "Black"
Artikelnummer: 8592842202152
CHF 6'999.00 Standardpreis
CHF 6'700.00Sale-Preis
